PhaseEye Phased Array Flaw Detector

PhaseEye is a dedicated ultrasonic phased array product family for PAUT, TOFD, FMC and TFM inspection workflows. TRX supplies PhaseEye instruments with matching probes, wedges, scanners and technical configuration support.

Whatsapp TalkSend Email
ModelsSeriesMatching SupportApplications

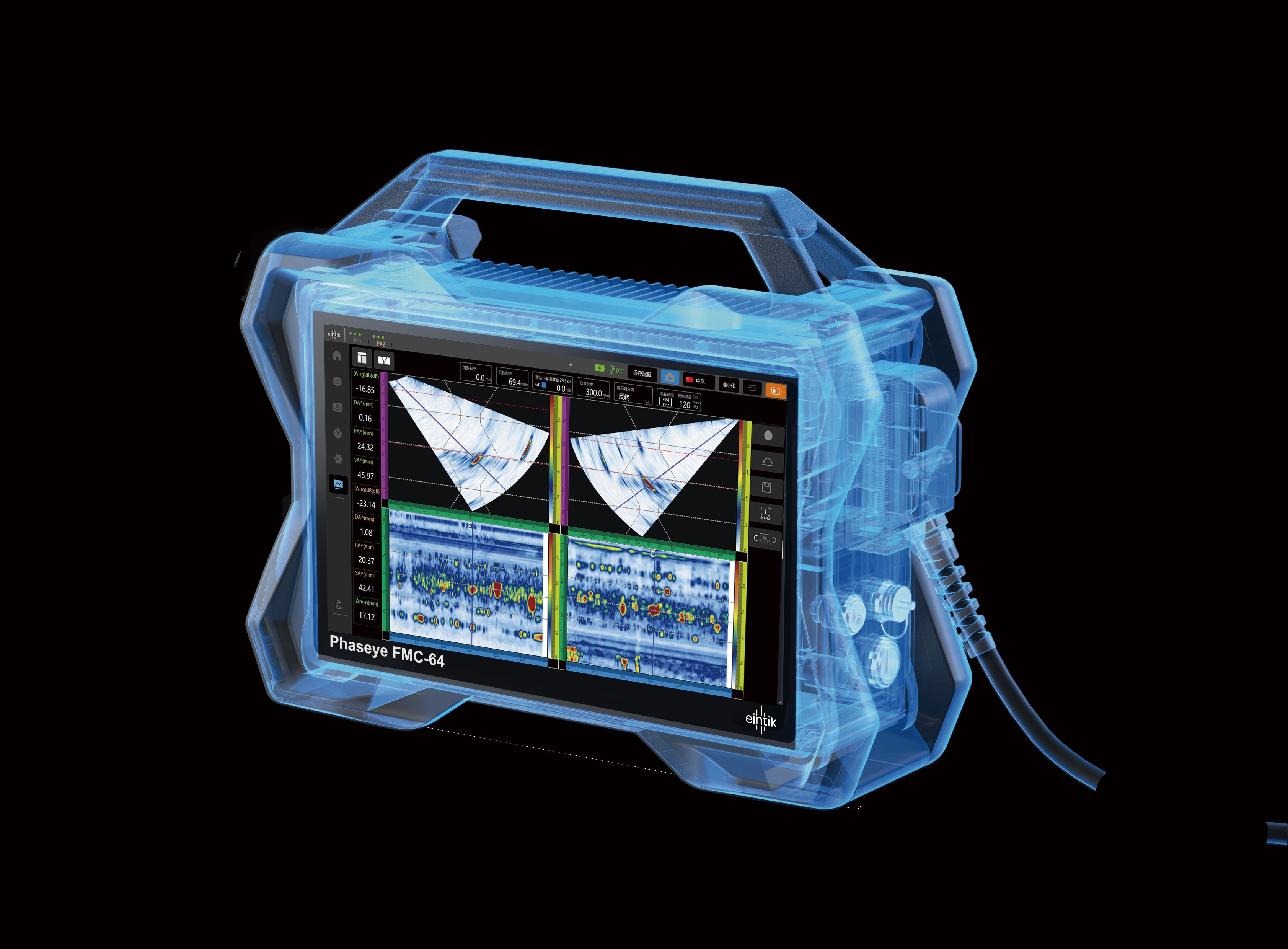

PhaseEye phased array flaw detector

PhaseEye Models

PhaseEye model directory.

These models reflect the PhaseEye equipment family used for high-performance phased array, FMC, TFM, TOFD and field inspection workflows.

PHASEYE / FMC 64

PHASEYE FMC-64 / 64:128PR

High-performance full matrix capture phased array flaw detector for advanced FMC, TFM and PA workflows. It is suitable for demanding applications where high-resolution imaging, multi-group scanning and 3D display are required.

  • 64 active PA aperture with 128 PR configuration
  • FMC / TFM / PCI / PWI capability
  • Up to 8192 focal laws
  • FMC data acquisition up to 2 GB/s referenced in Eintik product material
  • Recommended for welds, composites, blades, HDPE and complex inspection development
Whatsapp TalkSend Email

PHASEYE / TFM

PHASEYE 32:128PR

Advanced PhaseEye configuration for PAUT and TFM workflows requiring 32-channel aperture with extended receive configuration. It balances system performance and practical inspection coverage.

  • 32 PA aperture with 128 PR configuration
  • 0.4 MHz to 18 MHz PA system bandwidth
  • TFM maximum aperture up to 64
  • PAUT and TFM simultaneous display
  • Suitable for weld, pipe, composite and general industrial inspection
Whatsapp TalkSend Email

PHASEYE / PAUT

PHASEYE 32:64PR

Practical PhaseEye configuration for PAUT, TOFD and TFM-supported inspection where compact configuration and professional phased array performance are required.

  • 32 PA aperture with 64 PR configuration
  • Maximum PRF 20 kHz, upgradable to 40 kHz according to catalog data
  • FMC / PCI and PWI / TFM support
  • Built-in focal law calculator and 3D data view
  • Suitable for standard PAUT projects and system matching
Whatsapp TalkSend Email

Series Layout

PhaseEye and PhaseEye S.

The product family is organized into the high-performance PhaseEye series and the compact field-focused PhaseEye S series.

PhaseEye series

High Performance

PhaseEye Series

New generation ultrasonic phased array flaw detector integrating FMC, TFM and PA inspection. Designed for high-resolution imaging, multi-group inspection and advanced application development.

  • FMC / TFM / PCI / PWI support
  • PAUT and TFM simultaneous display
  • 3D workpiece structure display and 3D data view
  • Up to 64:128 PR configuration by model
  • Designed for advanced weld, composite, blade, aircraft skin and HDPE inspection

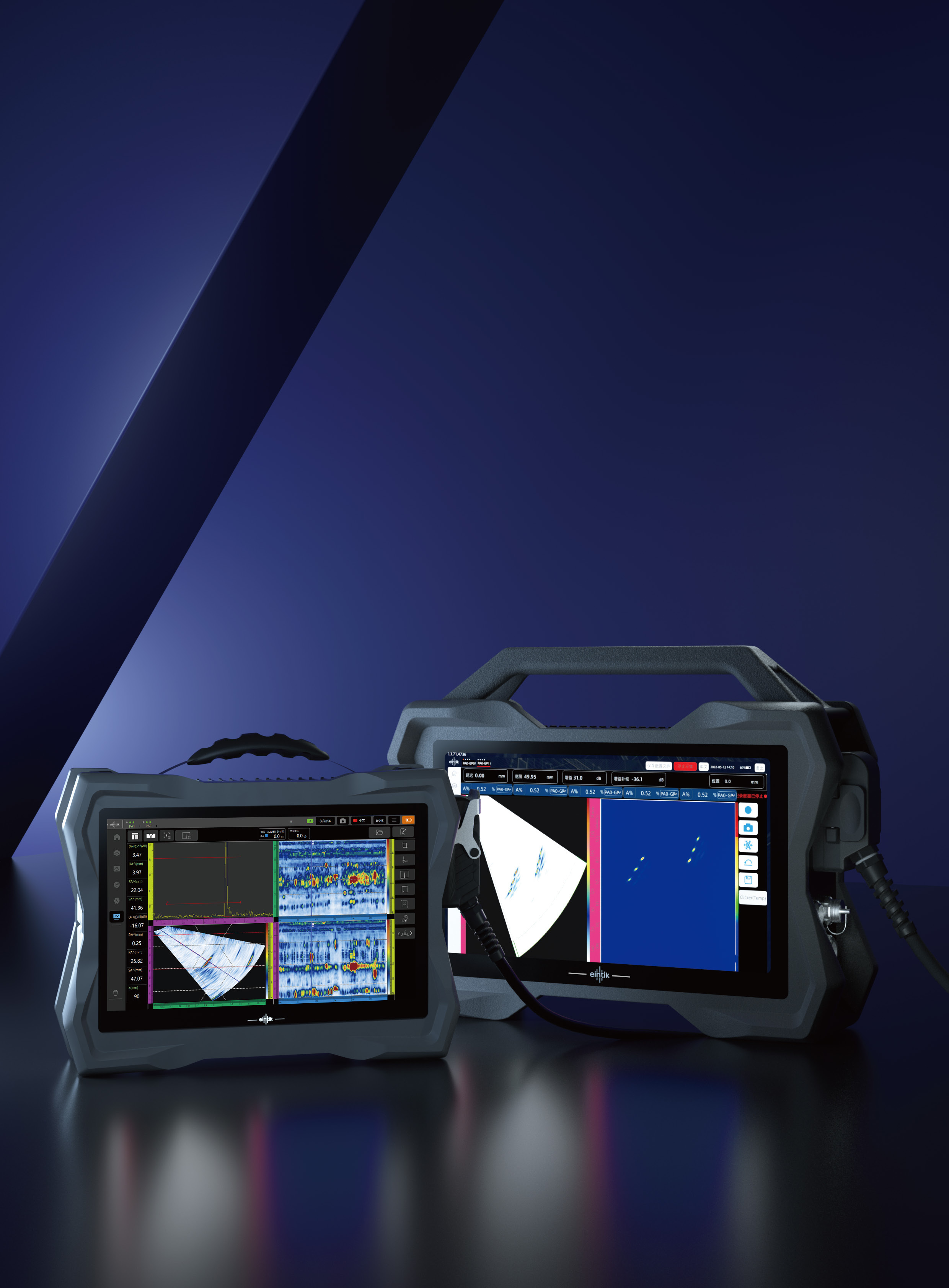

PhaseEye S series

Portable Field Series

PhaseEye S Series

Portable, lightweight and compact phased array flaw detector for on-site inspection work. It keeps a practical screen size while reducing instrument size and weight for field mobility.

  • 16:64 PR / 16:128 PR PA channel options
  • Supports conventional UT and TOFD modes
  • A-scan, S-scan, Line scan, C-scan, D-scan and TOFD display
  • Wireless remote control and Gigabit Ethernet support
  • Suitable for weld inspection, corrosion detection, composite testing and PE pipe electrofusion weld inspection

Matching Support

Accessories and matching items.

TRX can match accessories around the PhaseEye instrument according to probe, wedge, scanner and inspection workflow requirements.

Probe Matching

PAUT / UT / TOFD Probes

Probe selection by frequency, element count, pitch, aperture, housing style, cable and connector.

  • Phased array probes
  • Standard UT probes
  • TOFD probes
  • Custom probe assemblies

Wedge Matching

Wedges and Accessories

Wedges selected by refracted angle, wave mode, pipe diameter, surface shape and scanner mounting requirement.

  • PAUT wedges
  • TOFD / UT wedges
  • Water wedges
  • Curved and custom wedges

Scanner Matching

Industrial Scanners

Encoded scanner setup for weld, pipe, composite, blade and corrosion workflows.

  • R3 / R20 / R23 / R30 weld scanners
  • R1 / R4 roller scanners
  • R5 / R6 / R39 corrosion and flexible scanner options
  • E01 encoder and R9 couplant feed unit

Software Support

Software and data workflow.

PhaseEye instruments are supplied with PhaseSoft software and analysis workflow support. Final software options depend on the instrument configuration and project requirements.

On-board Software

PhaseSoft

On-board software for PAUT, TFM and data analysis workflows.

  • A, B, C, D, S and 3D imaging display modes
  • Built-in focal law calculator
  • Probe and wedge database support
  • Data processing and reporting functions

Advanced Imaging

FMC / TFM / PCI / PWI

Advanced imaging modes for higher coverage, sensitivity and defect interpretation.

  • FMC / TFM support
  • FMC / PCI support
  • PWI / TFM and PWI / PCI support
  • Multi-modal TFM simultaneous detection

Connectivity

Data and Remote Support

Connectivity options for field data transfer and workflow integration.

  • USB 3.0
  • Wireless transmission
  • Gigabit Ethernet by model
  • Mini DP video output by model

Key Parameters

Series comparison.

Final configuration should be confirmed according to probe, encoder, scanner and inspection application requirements.

PhaseEye

Dimensions348 x 254 x 114 mm
WeightAbout 4.96 kg including one battery
Screen11.6 inch, 1920 x 1080 capacitive touchscreen
PA channels64:128 PR, 32:128 PR, 32:64 PR options
Bandwidth0.4 MHz to 25 MHz by configuration
Focal lawsUp to 8192
Digitizing200 MHz, 16 bit
Storage256 GB SSD, expandable to 1 TB
BatteryAbout 5 hours operation on 2 batteries

PhaseEye S

Dimensions287 x 232 x 98 mm
Weight3.9 kg including one battery
Screen10.1 inch, 1280 x 800 capacitive touchscreen
PA channels16:64 PR / 16:128 PR
Bandwidth0.4 MHz to 18 MHz
Focal laws256
Digitizing100 MHz, 16 bit
Encoder2-axis encoder interface
NetworkWireless and Gigabit Ethernet port

Applications

Inspection scenarios.

Weld inspectionComposite material testingWind turbine blade inspectionAircraft skin bonding inspectionHDPE / PE pipe electrofusion weld inspectionCorrosion detectionGear detectionAluminum plate and honeycomb inspectionPlane detectionBolt detection
